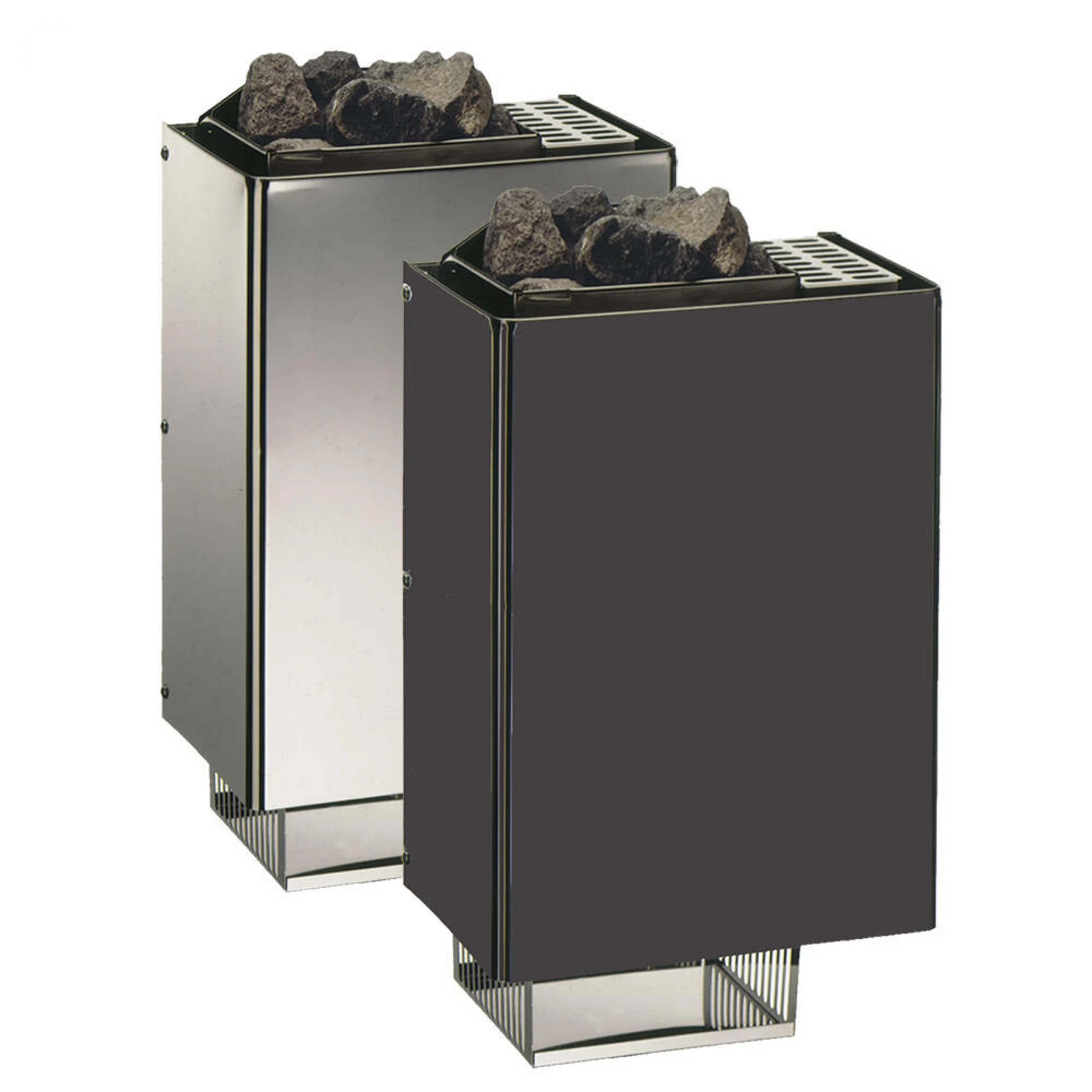

EOS Mini W – compact electric sauna heater for small saunas
EOS Mini W is a reliable electric sauna heater manufactured in Germany, designed for small private saunas. Thanks to its compact dimensions and wall-mounted installation, this heater is particularly suitable for sauna rooms with limited space, where every centimetre matters. Its robust construction, classic design and proven technical solutions ensure stable operation and an authentic traditional Finnish sauna experience.
The heater is intended for dry (traditional) Finnish saunas, characterised by high temperatures and low humidity. EOS Mini W offers even heat distribution, reliable electronics and long service life, which are typical features of EOS products.
Technical data
Power supply and electrical connection
-
Power: 3.0 kW
-
Power supply: 230 V 1N AC 50 Hz
-
External sauna control unit required (not included in delivery)
-
Compatible control units:
-
EOS Econ D1 94.6136
-
EOS Econ D2 94.6138
-
EOS Econ D3 94.6140
-
EOS Econ D4 94.5842
-
EOS EmoTec, EmoStyle and EmoTouch series
-
-
Recommended fuse: 1 × 16 A
Recommended sauna size
-
Sauna room volume: 3–4 m³
Dimensions and weight
-
Dimensions (H × W × D): 50 × 30 × 21.5 cm
-
Weight without stones: approx. 9.2 kg
Construction
-
Outer casing: stainless steel (polished or anthracite finish)
-
Internal components: aluminium-coated steel, corrosion-resistant
-
Rear panel: galvanised steel
-
Stone basket: stainless steel
Sauna stones
-
Stone capacity: approx. 8 kg
-
Sauna stones included
Ventilation
-
Minimum air intake / exhaust opening size: 20 × 4 cm
Connection cable
-
Connection cable: 3.5 m, 3 × 1.5 mm² (included)
