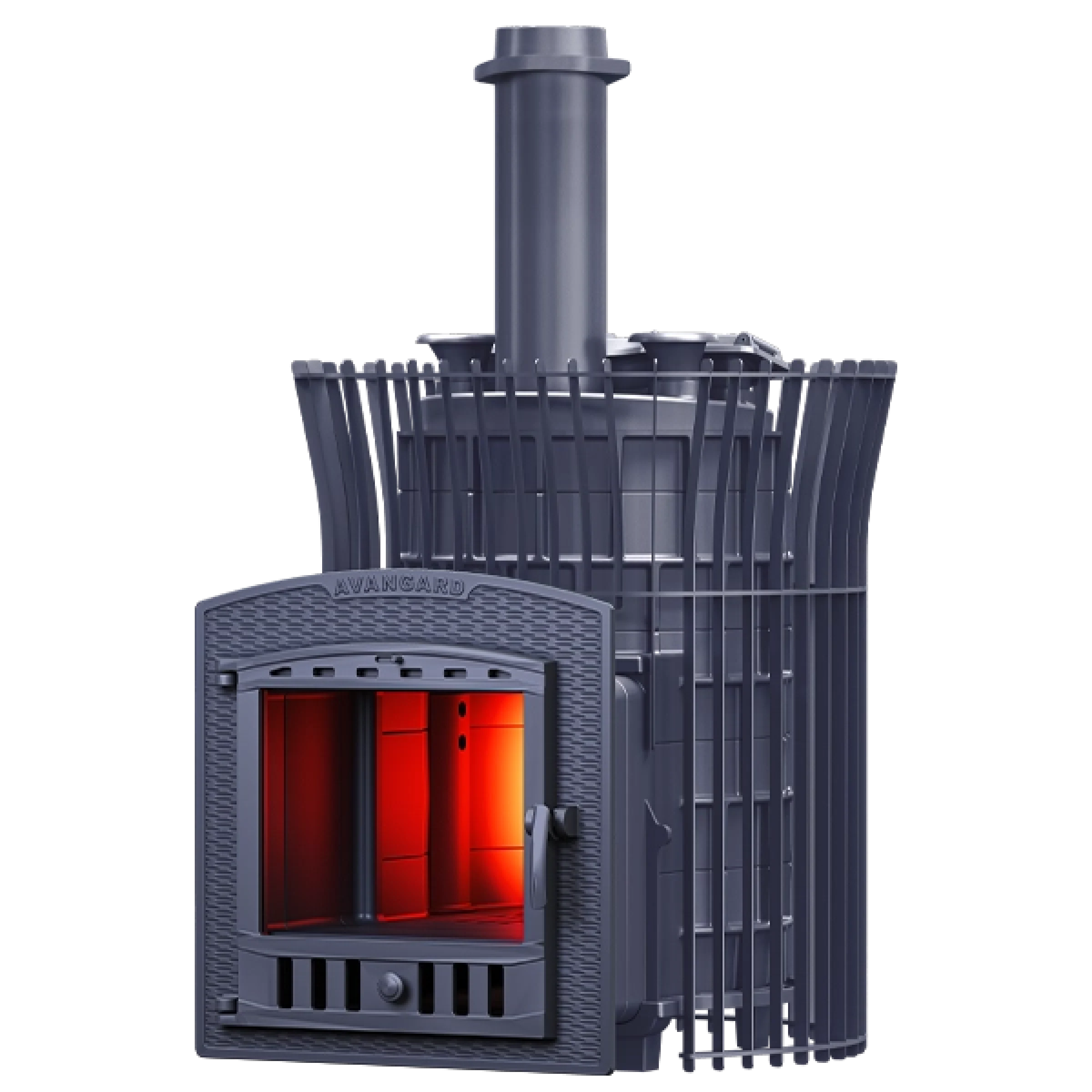

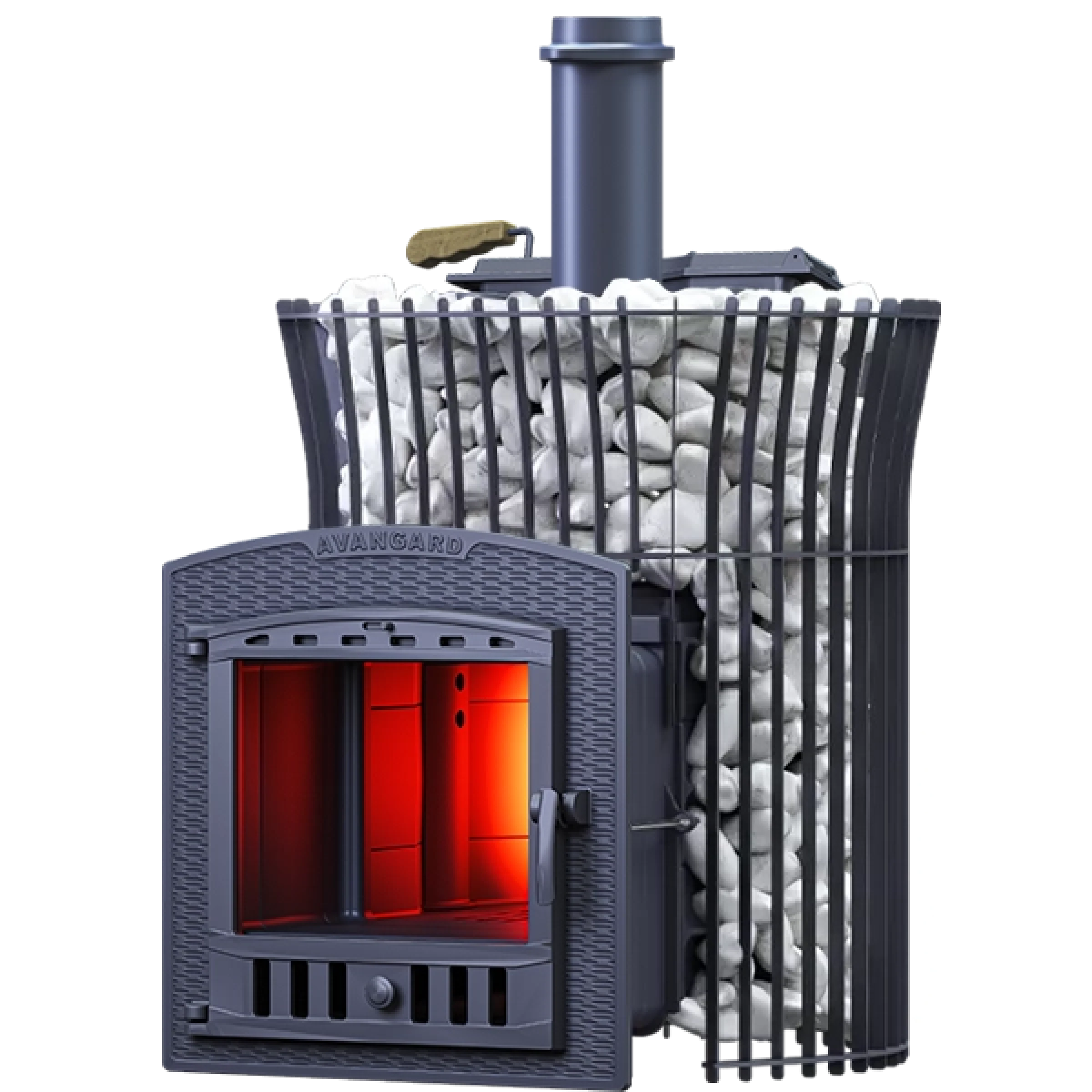

Avangard ZK Uragan 25 (P2) is a new concept of heating a cast-iron heat-retaining sauna stove with direct charging.
The body is modular, the assembly is from the bottom up, the modules are connected according to the tongue-and-groove system.
The weight of the steam evaporator in the Avangrad stove is 42 kg, it is heated by direct contact with the flame. The steam evaporator has 2 surfaces with an increased working area - from below it is heated by fire, and from above water is supplied for steam. To increase the evaporation area and warm up the first layers of stones, high spikes are placed on the stove.

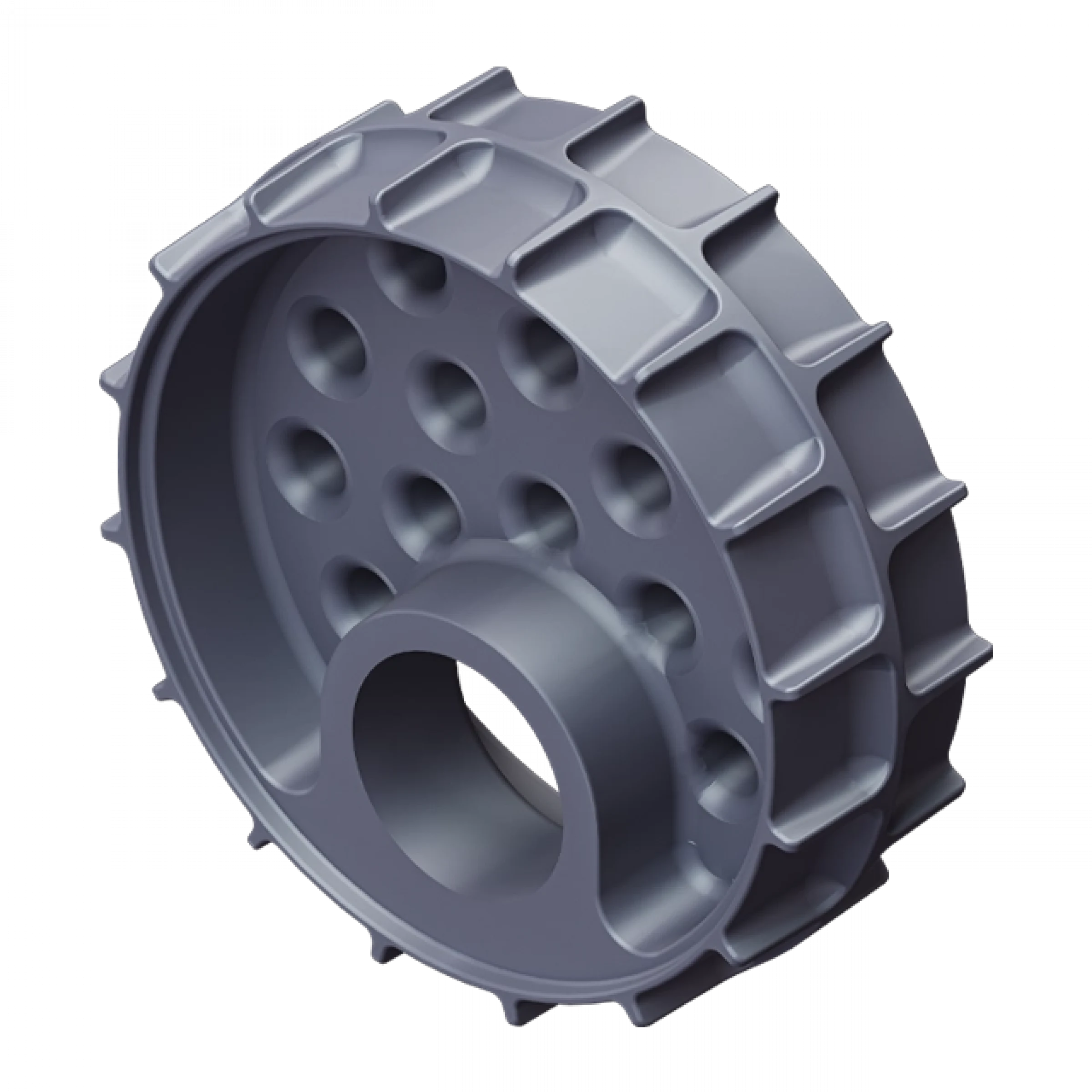

The flame distributor is installed under the stove in 3 stages, it divides the flame into 3 streams and first directs it to the side parts for intensive heating of the walls and convective heating of the air in the steam room. For this, convection spikes are located on the outer surfaces. In addition, the flame passes through the edges to the exit to the chimney, heating the stove.
The heater allows you to install various GEFEST starter modules together with the sliding block.
The set includes:
- sauna stove Avangard ZK Uragan 25 (P2)
- starter pipe 0.5 m.
- stove lid
- 2 steam cannons
- grid "Tulip"
- closed heater door with steam control valve
- stainless steel ash box
- sealant up to 1500С - 1 pc.
- warranty certificate (instructions for use)
The stones are purchased separately.
