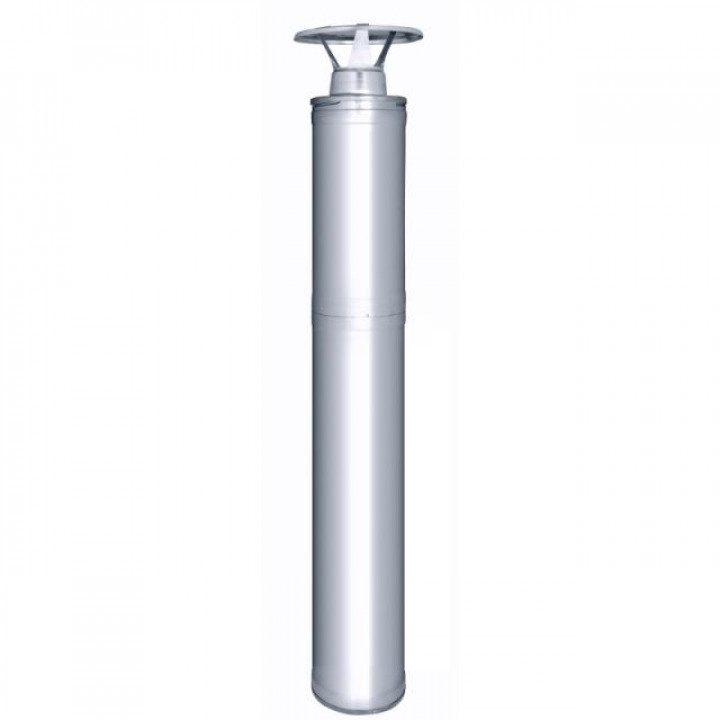

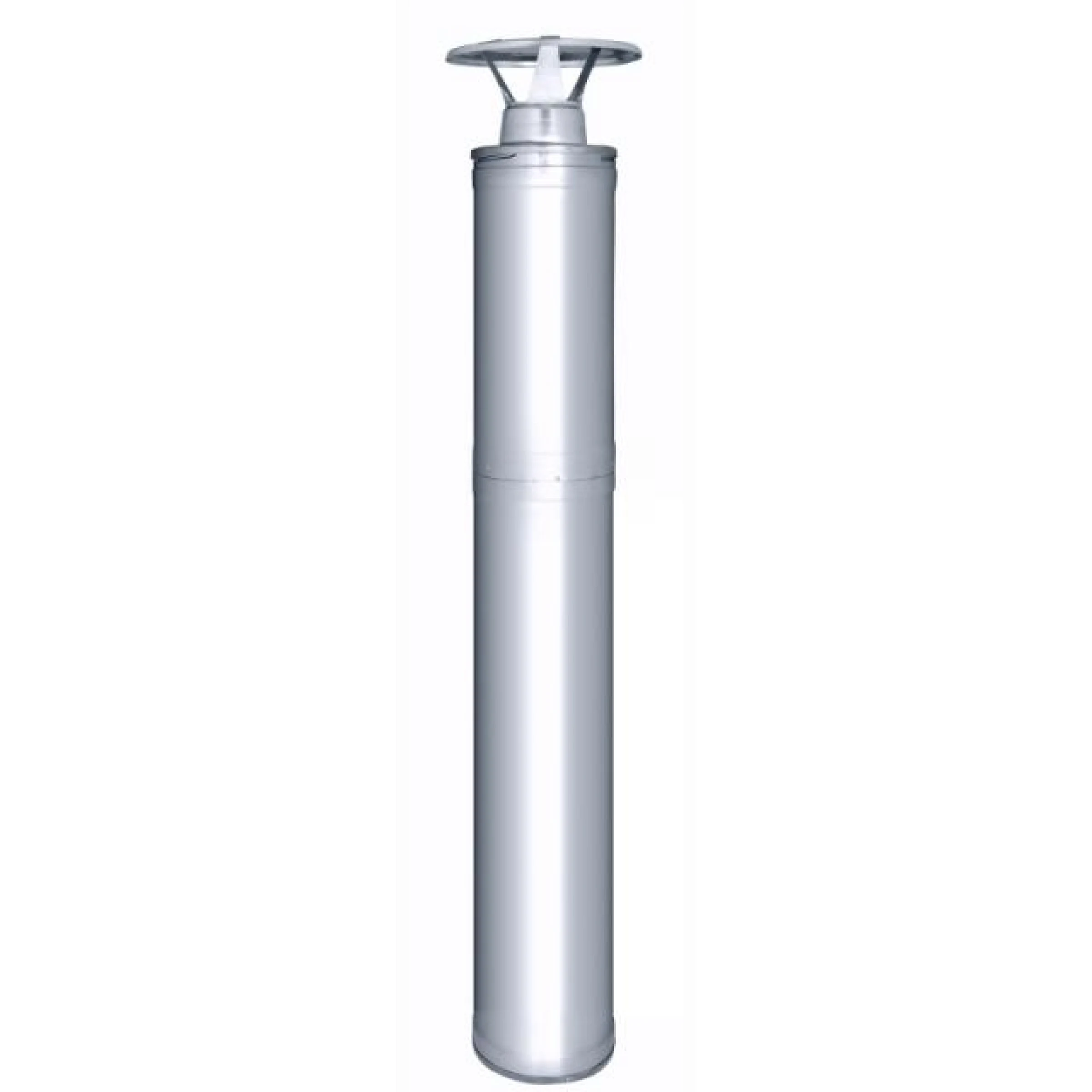

Modular lightweight stack design for sauna heaters, and other wood-burning oven, the exhaust gas temperature exceeds 600 ° C, ie, high-temperature ovens. Must the CE marking comply with international safety requirements.
Exterior and interior are made of stainless steel. Heat insulation of special fire resistant mineral wool. Outer diameter - 220 mm. The inner diameter of the connecting pipe - 115 mm. Safety distance from the outside of insulated chimney to combustible materials is 100 mm. Attention: Before ordering, and installing, please read the installation instructions!

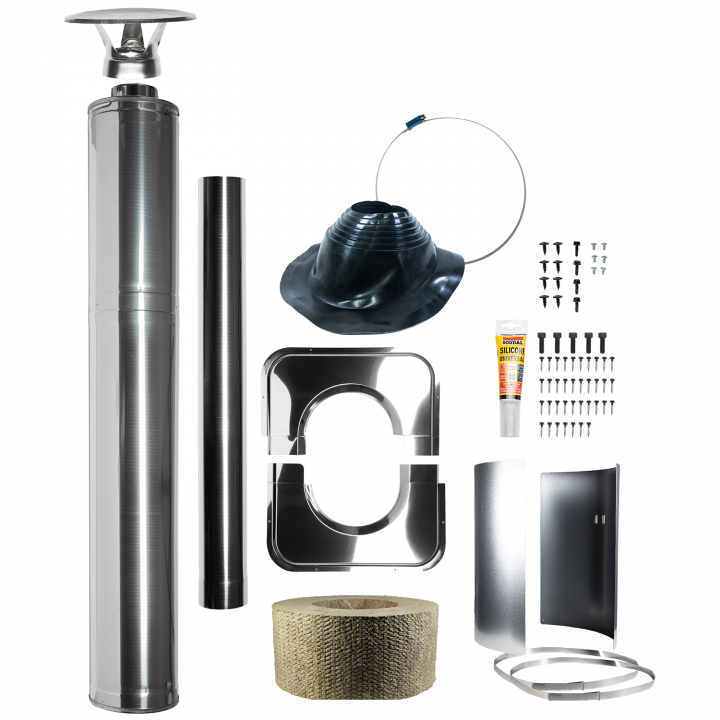

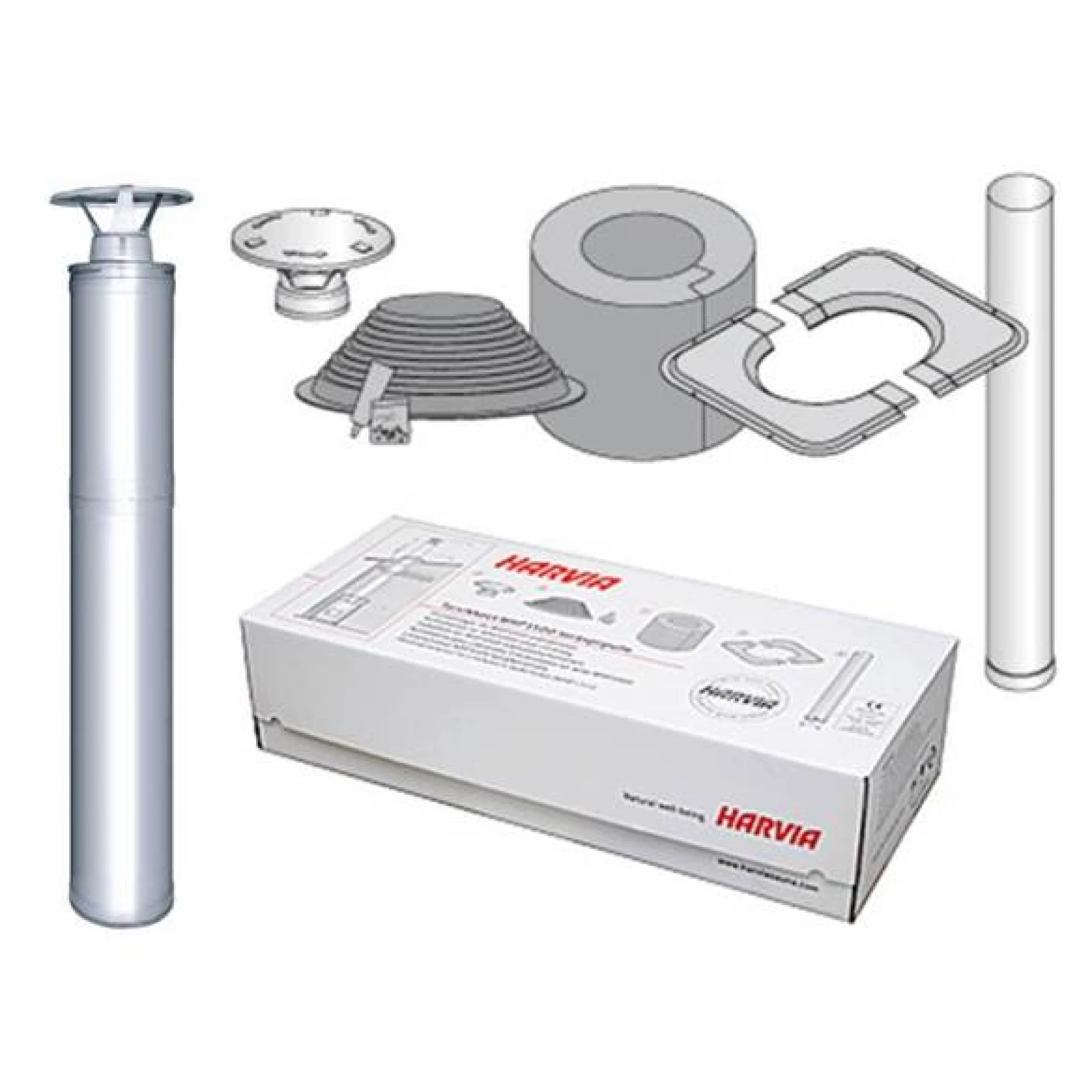

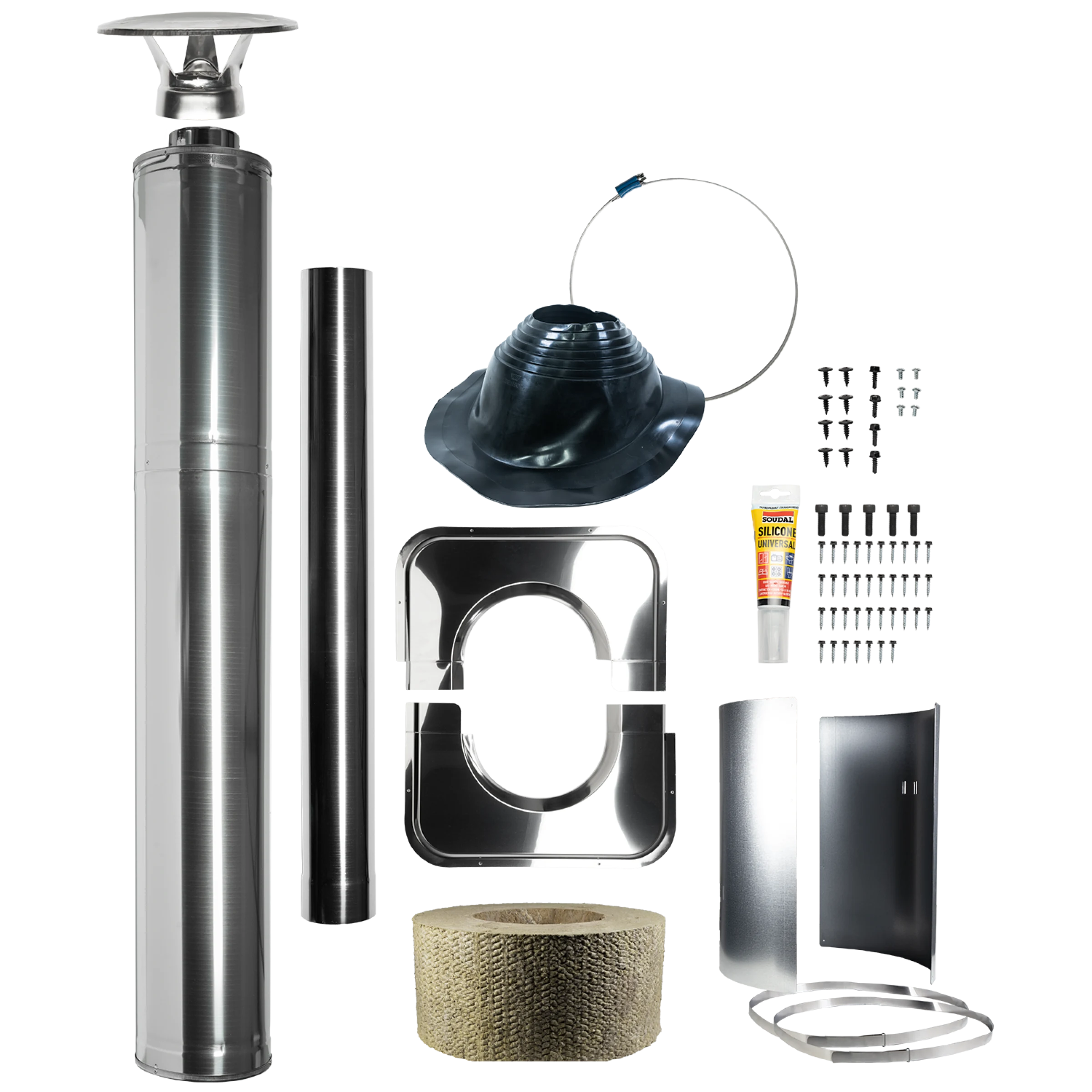

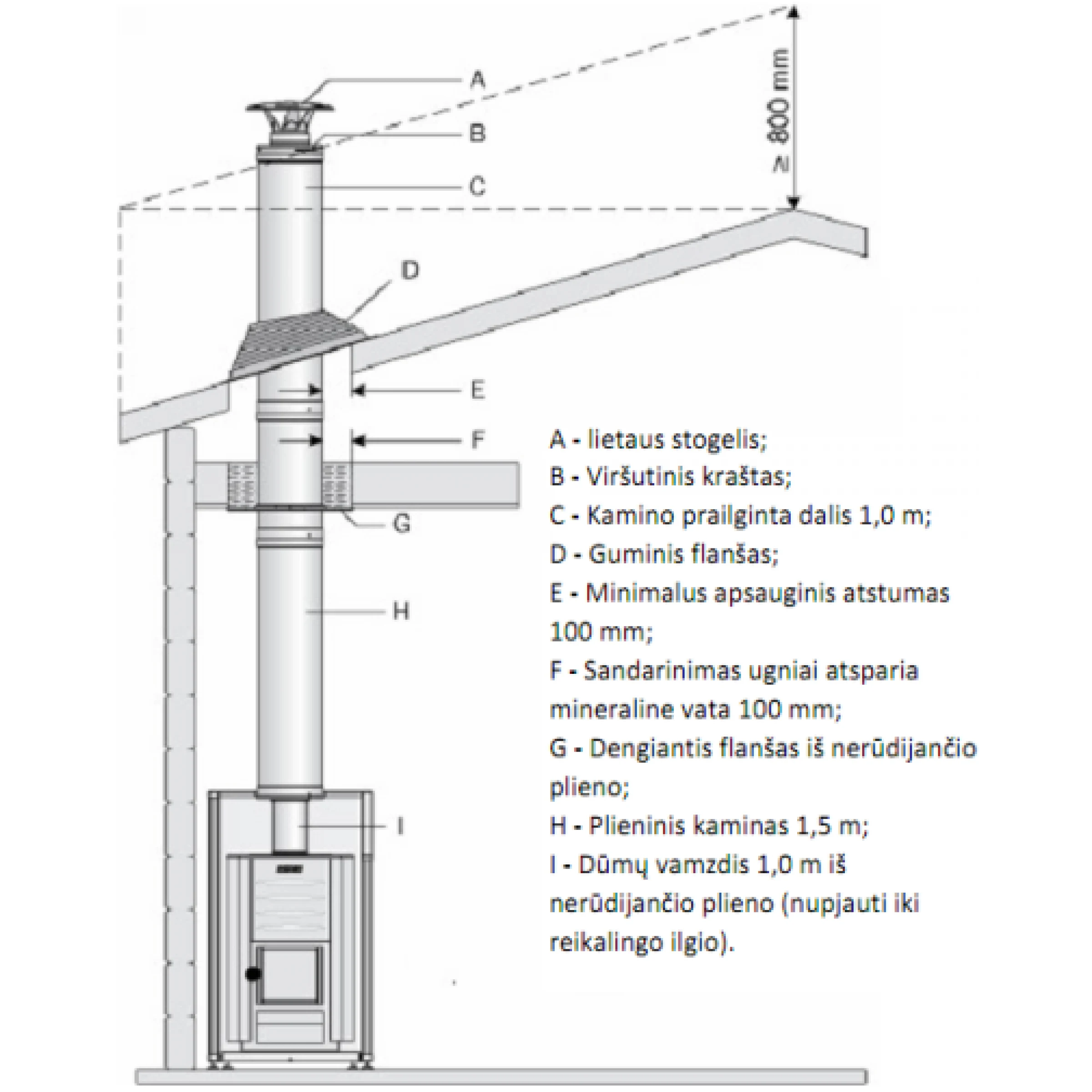

Includes insulated chimney of 1.5 m (H), rain canopy (A), rubber roof flange (D), ceiling insulation (F), covering the ceiling flange stainless steel (G), smoke the pipe of 1.0 m (I), the installation media. Length: 2500 mm.
The type of rubber roof flashing is selected when placing the order: the asymmetrical flashing is designed for pitched roofs, while the symmetrical flashing is intended for flat roof surfaces.
