Easysteam ES 3-M-N is the most evolved, compact and flexible solution for steam humidification of any environment. The integrated electronic control permits to configure and optimize the humidifier on the basis of customer's specific requirements and to guarantee its long-lasting thanks to diagnostic routines. Stainless steel removable front cover and the openable cylinder permit a rapid and simple maintenance. The full range of models and accessories satisfy all installation requirements.
Applications
• Steam/humidity generator for industrial plants, offices, civil facilities, call centres, hotels, museums and bookshops, technological or medical facilities, tobacco industry, food industry, seasoning, wood industry, paper mills, printing industries and steam rooms.
Main characteristics
• Electrodes steam humidifiers.
• Single-phase power supply versions with steam producing up to 6 kg/h.
• Three-phase power supply versions with steam producing up to 48 kg/h.
• Master/slave humidifiers management (up to 6 units) to reach steam productions up to 288 kg/h.
• Structure in stainless steel, painted steel and polypropylene.

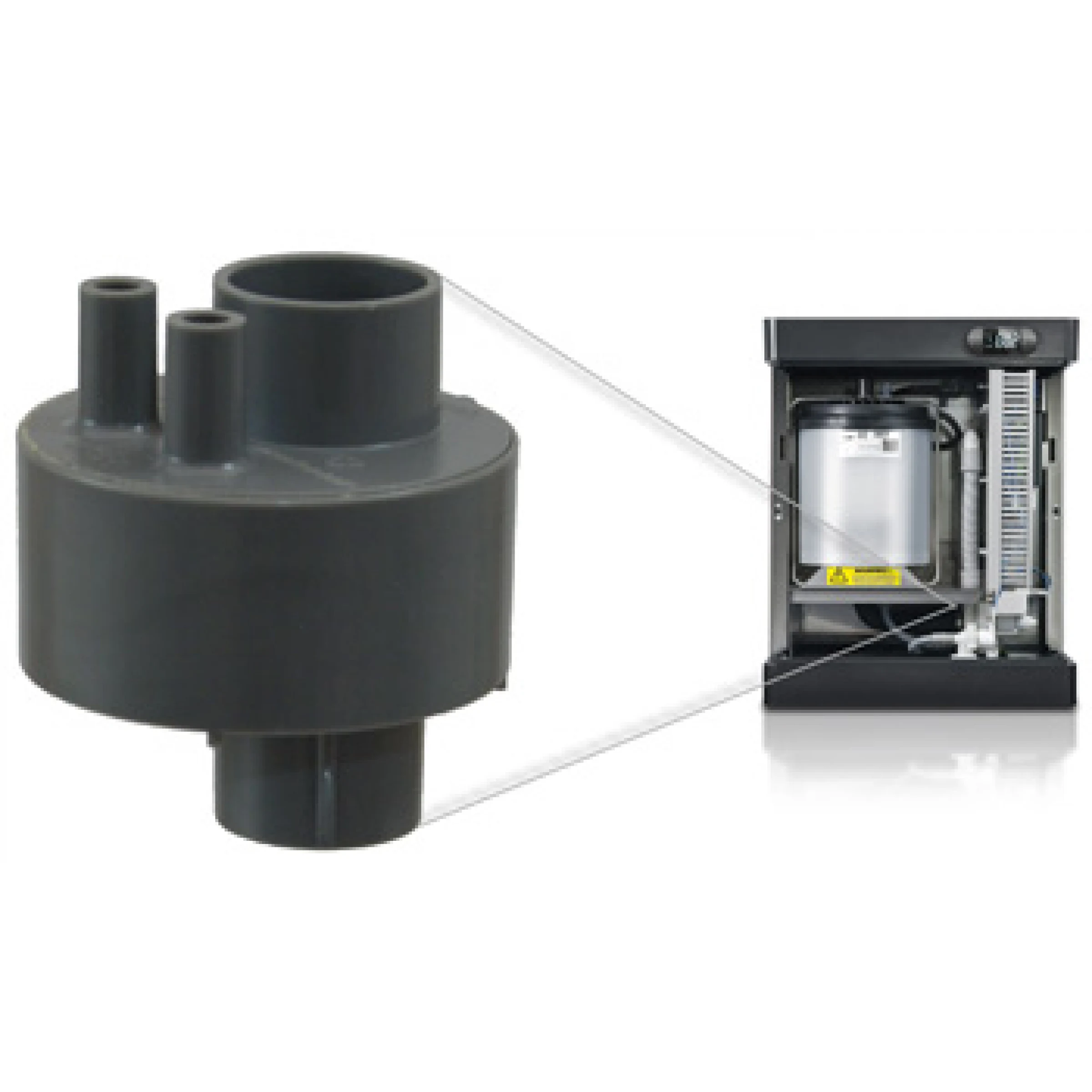

• Easily interchangeable and openable cylinders with galvanized steel electrodes, limestone filter on the bottom, maximum level sensor and connector connections.
• Solenoid valve for water charging.
• Tough and reliable drain pump.
• Available cylinders for low conductivity water (minimum conductivity limit 125 µs/cm).
• Integrated electronic control.
• Arrangement for fan unit power supply.
• Management of second duct humidity probe to avoid condensation in the air duct.
• Kit dedicated to replace only the electrodes.
• Large accessories range.
Electronic control
• Featuring numerous parameters and an user-friendly display, the EASYSTEAM controller allows precise setting of humidifiers performance. Thanks to the high number of available variables it is possible to personalize humidifier functioning on the basis of customer requirements.
• Eight operating modes can be set among which ON/OFF from external contact, proportional with built-in humidistat and 4-20mA or 0-10V probe, proportional with external 0-10V signal. Built-in thermostat ON/OFF. BMS control via Modbus.
• Duct probe management.
• Designed for use in steam saunas. Equipped with connectors for connecting temperature control, scent system, and fan.
• Settable with maximum capacity.
• Proportional regulation of steam dispensing from 20% to 100%.
• Steam dispensing reduction from digital input.
• Programmable automatic drainage when not used.
• Management of up to 6 humidifiers in battery with master/slave configuration.
• Humidifier operating hour meter.
• Maximum level sensor management.
• Control console with large display and status icons for reading and programming work data remotely up to 100 m away with a simple phone cable.
• Diagnostics for problems identifying or maintenance need.
• Serial RS485 connection with Modbus protocol.
