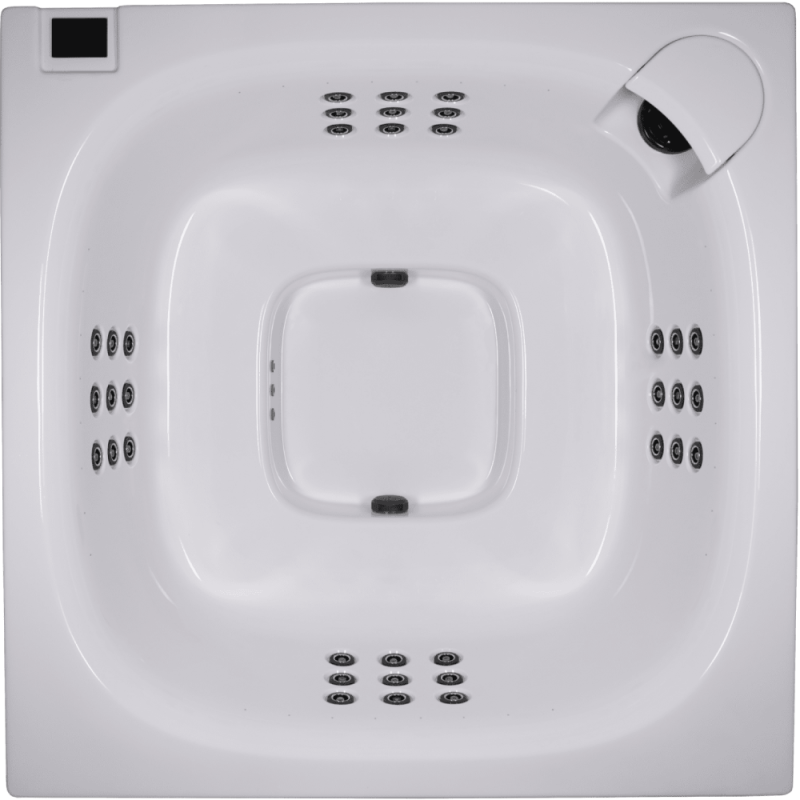

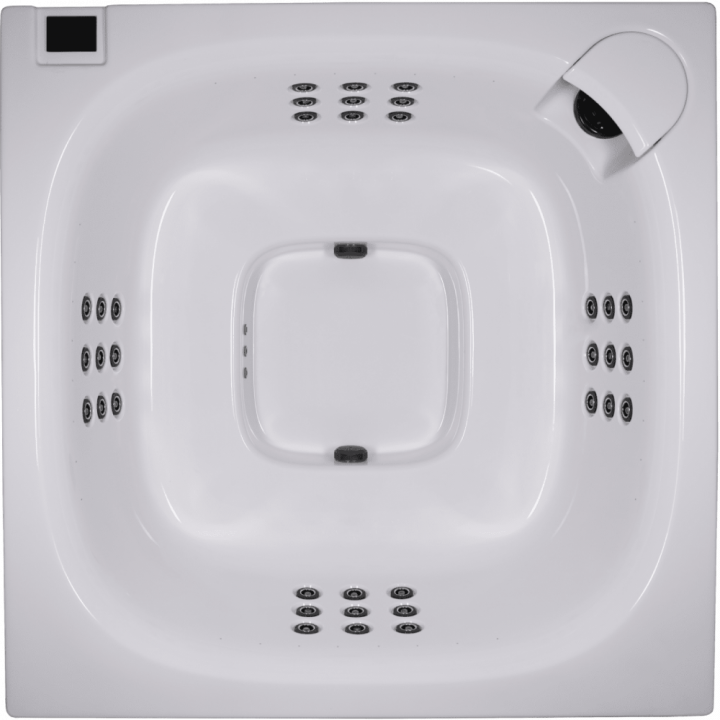

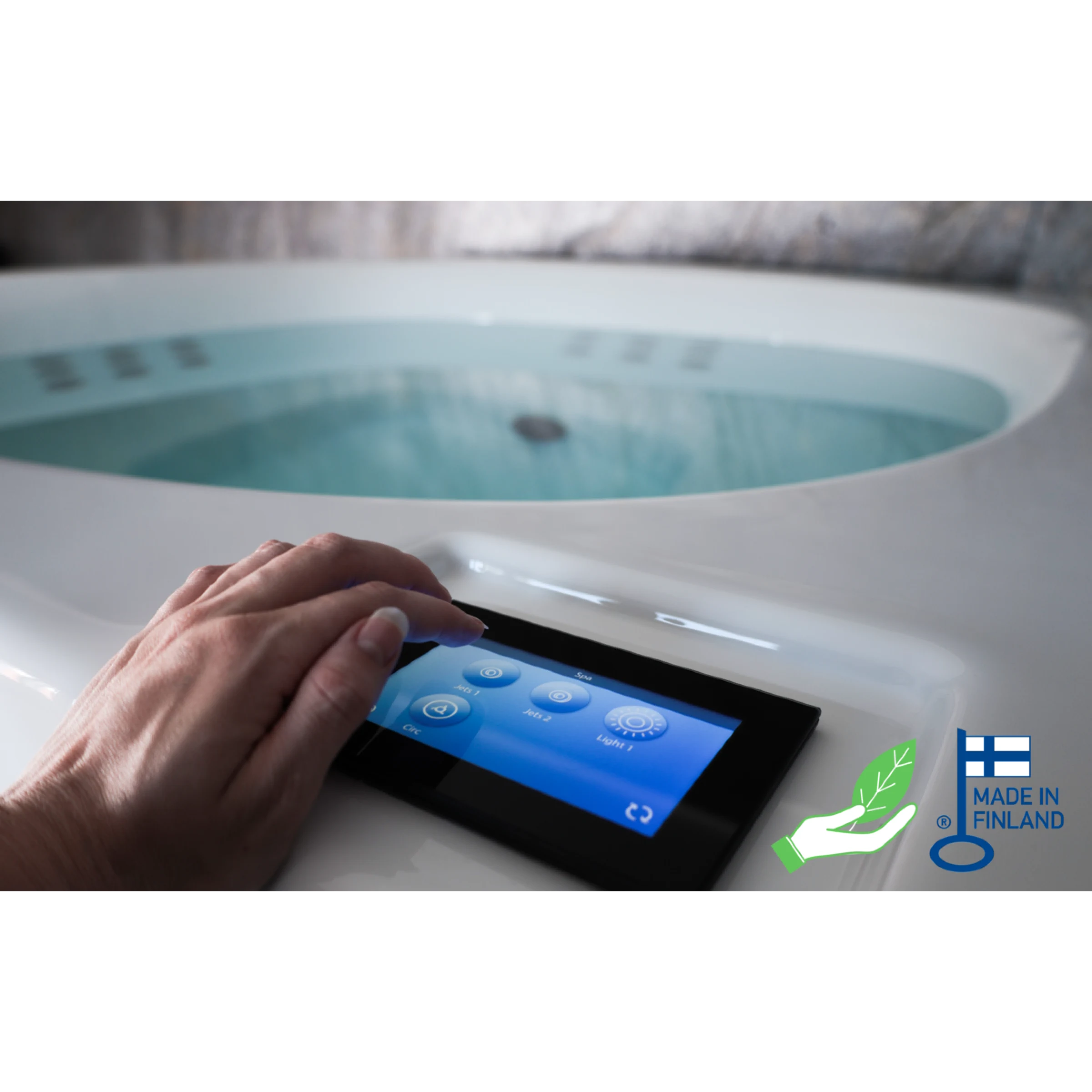

The Lumispa hydromassage spa is designed for 4–6 people. It is equipped with 36 massage jets, two massage pumps and a separate circulation pump. The main spa functions are operated using a Balboa SpaTouch 3 control panel.

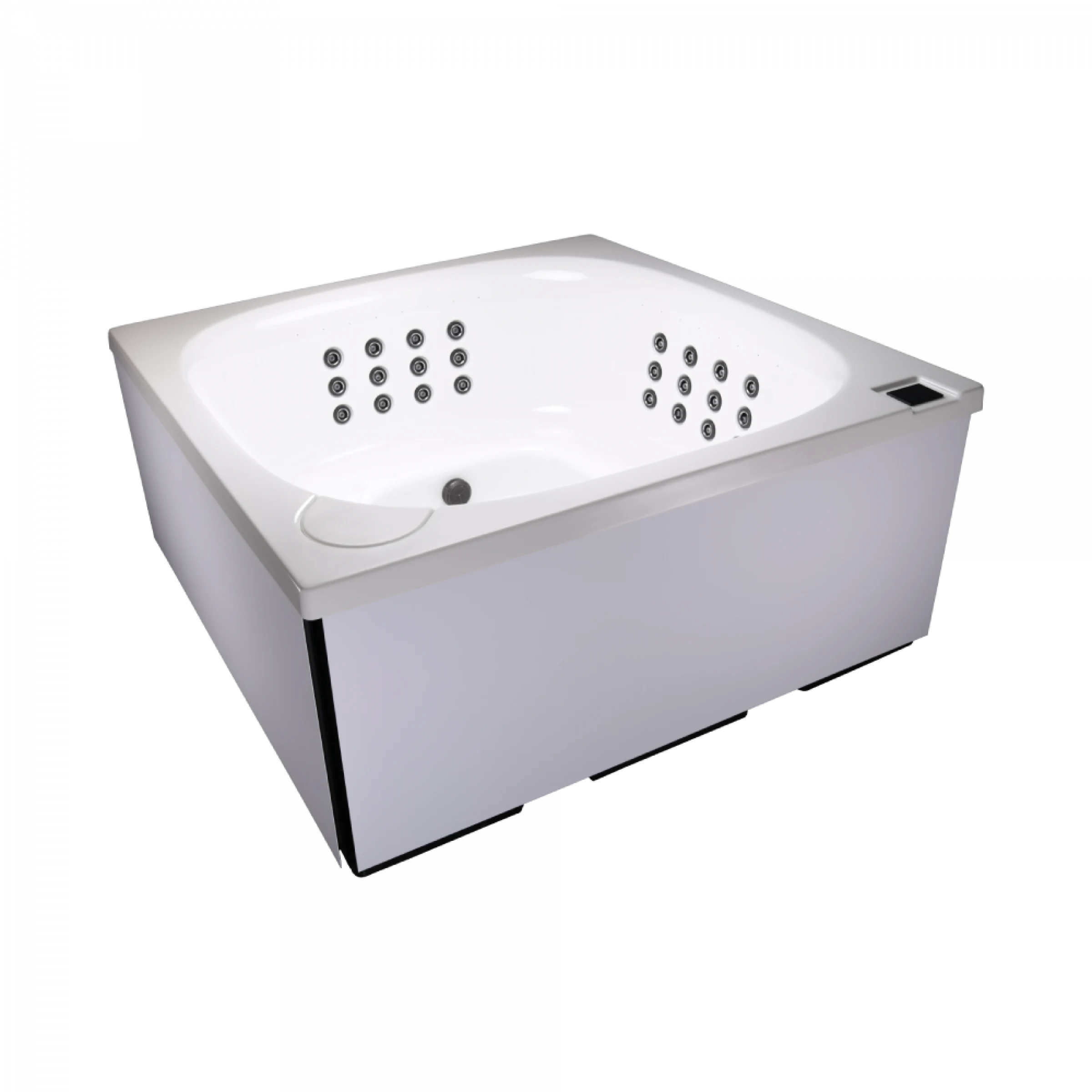

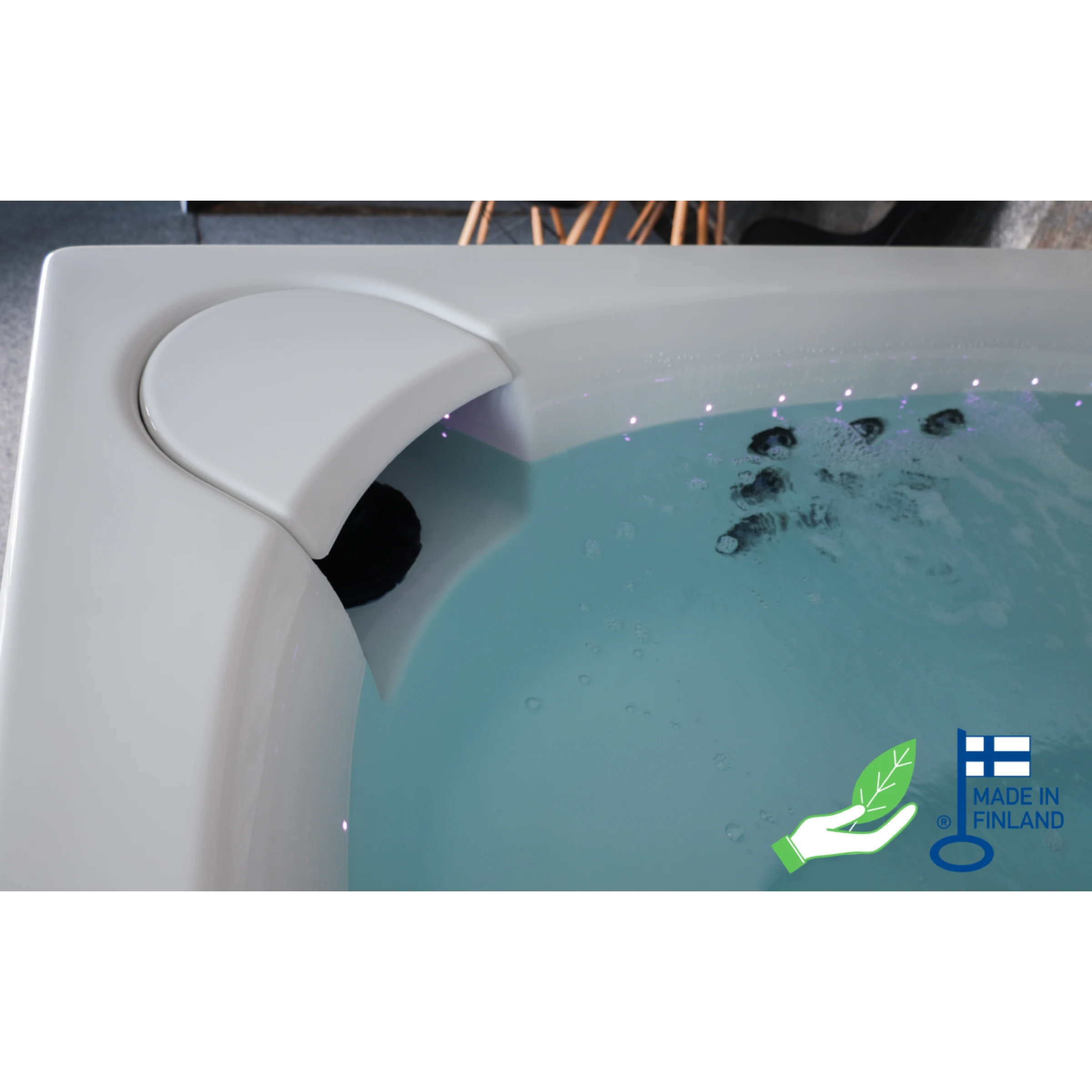

According to the manufacturer’s information, the spa is manufactured in Salo, Finland. Its construction features an aluminium frame and aluminium-composite exterior panels. PIR insulation is used in the side and lower sections of the structure to help reduce heat loss.
The included 12 cm insulated cover is intended to cover the water surface when the spa is not in use. Actual heat retention and energy consumption depend on the ambient temperature, selected water temperature, frequency of use and other operating conditions.
The spa is equipped with a filtration system and an ozonator. The ozonator supplements routine water treatment but does not replace regular water testing, filter cleaning or the use of suitable disinfecting products.

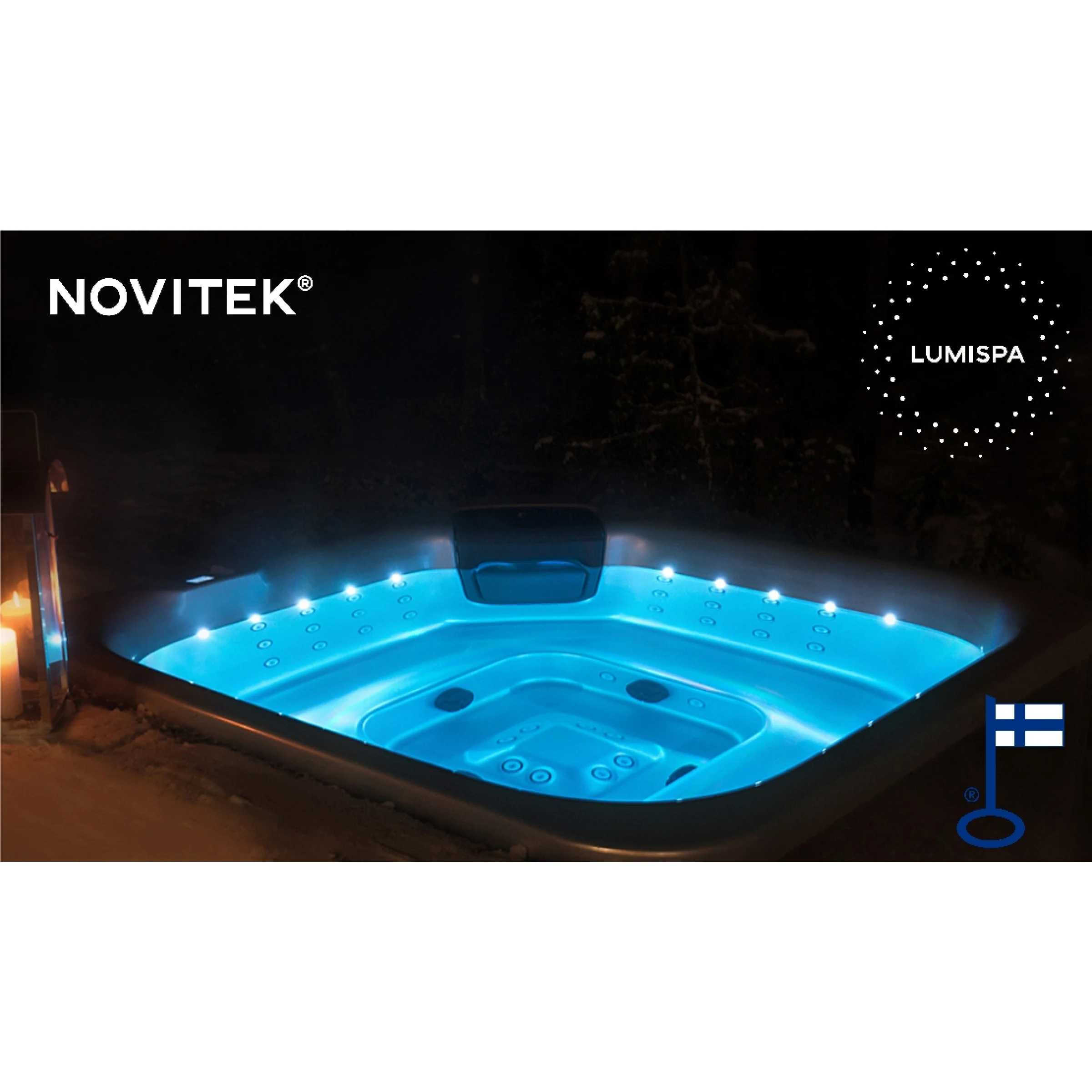

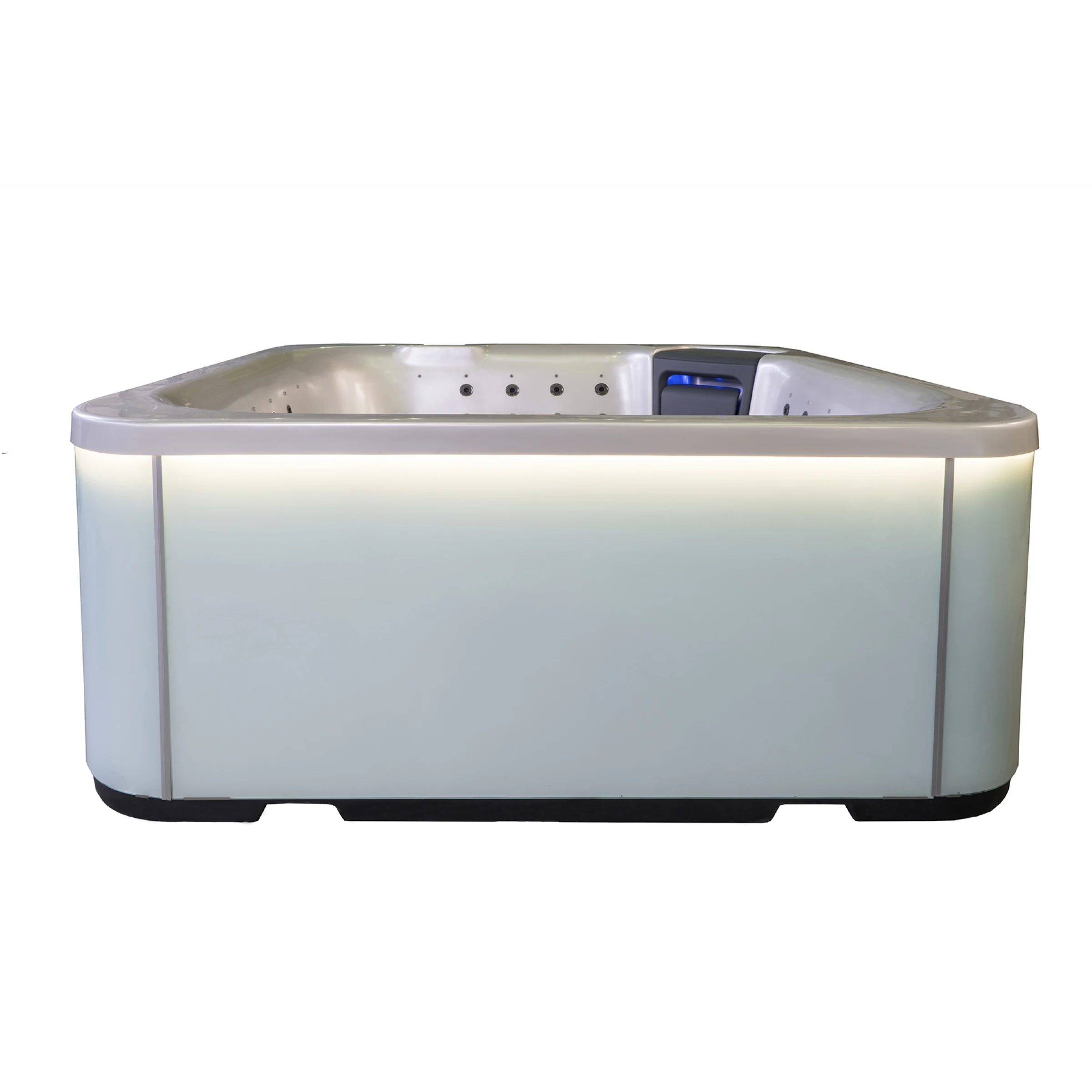

LED lighting is installed around the waterline, massage jets and exterior corners. Available lighting modes and control functions depend on the specific spa configuration.
An ABS plastic base helps protect the lower structure and the equipment installed inside it. Forklift openings are provided underneath the spa for transport. The spa must be moved and installed in accordance with the manufacturer’s instructions.
Technical specifications:
- dimensions – 210 × 210 × 102 cm;
- capacity – 4–6 people;

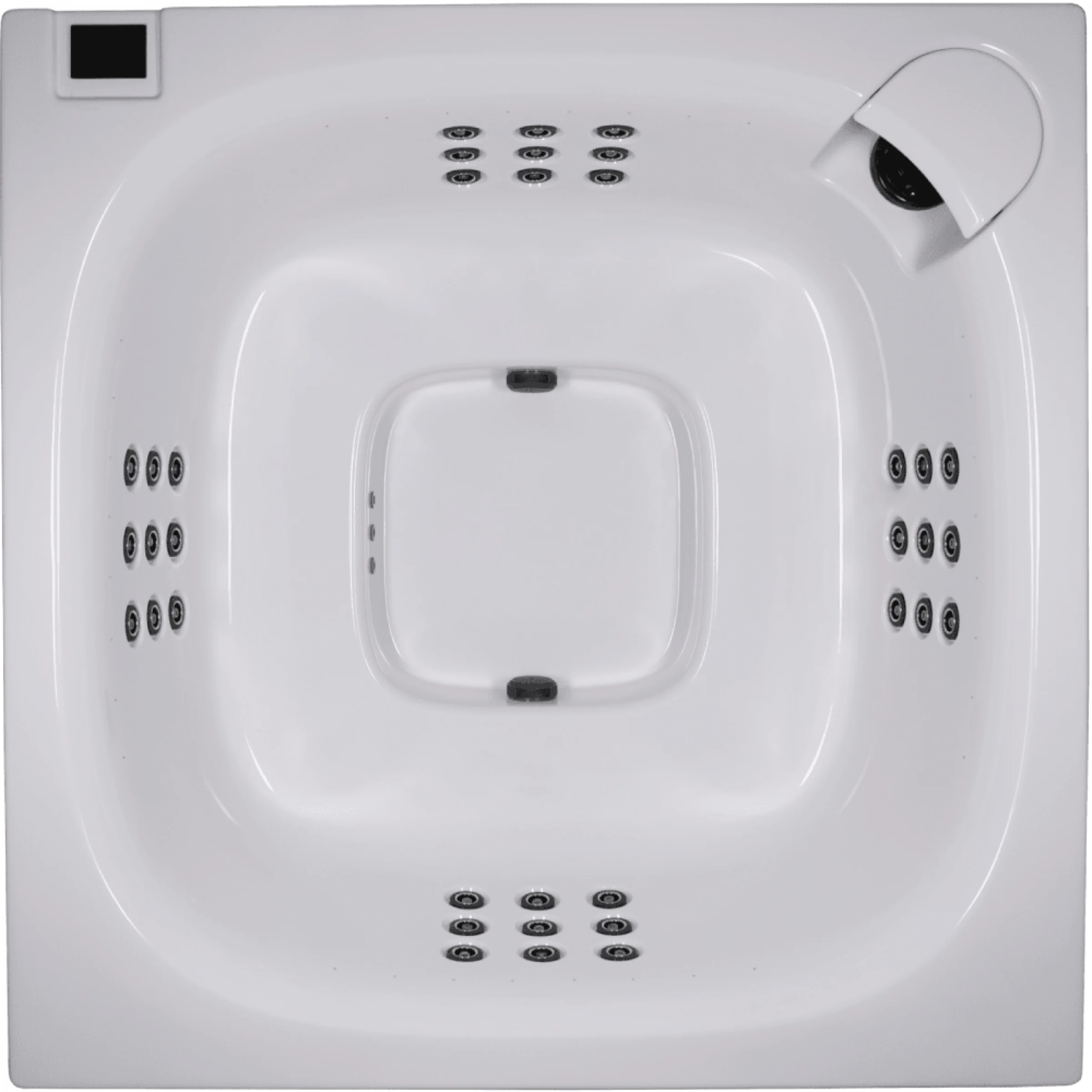

- number of massage jets – 36;
- water capacity – 1,570 L;
- dry weight – 320 kg;
- exterior finish – aluminium composite;
- power supply – 3 × 16 A, 400 V;
- control panel – Balboa SpaTouch 3;
- massage pumps – 2 × 1.5 kW;
- circulation pump – 300 W;
- heater – 3 kW;
- ozonator;
- LED lighting;
- removable insulated cover;
- exterior ambient LED lighting.
The electrical connection and commissioning must be completed by qualified professionals. The spa must be installed on a level, properly prepared base capable of supporting its total filled weight.
Extras:
Auxiliary heater
The additional heater heats the water to the set temperature faster and maintains the temperature even in the coldest temperatures.
For higher latitudes, or if the location is at all windy, we always recommend choosing a factory fitted 3kW booster heater for your pool.
ControlMySpa remote control
ControlMySpa remote pool control is designed for greater flexibility and ease of use.
The app allows you to be connected to your spa via your mobile device, wherever you are.
You can control the temperature, schedule, manage lights and receive notifications, among other things.
Audio
Flush-mounted vibration speakers installed inside the hot tub, attached to the shell, transform the entire hot tub structure and the water into one large speaker. The resonant subwoofers produce a high quality sound that is pleasant to listen to while enjoying the warmth of the spa. The speakers work with bluetooth. Power 2 x 15W/4Ω
Package includes:
- Bluethoot audio amplifier
- 2 pcs. vibration speakers
UV SANITIZER
UV light destroys 99% of harmful viruses, bacteria and pathogens without adding any harmful chemicals or gases to the water.
Clim8Zone heat pump
Energy efficient. Thanks to the high-quality insulation, the SmartCover minimizes heat loss from the outdoor hot tub.
• The insulation material of the SmartCover makes the cover impervious to moisture and water.
Microsilk
There is strength and beauty in water. MicroSilk® is a new, patented form of hydrotherapy that rein-
vigorates your body and skin and makes you look younger and feel better. The gentle effervescence
and silky feel of the water are signs that your body benefits from the saturated water with billions of
oxygen-rich microbubbles. These microbubbles increase the water’s oxygen level, energize skin cells,
stimulate the immune system and collagen production, kill bacteria and boost recovery. Instead of
adding any chemicals into the water, MicroSilk® works solely with a pump.

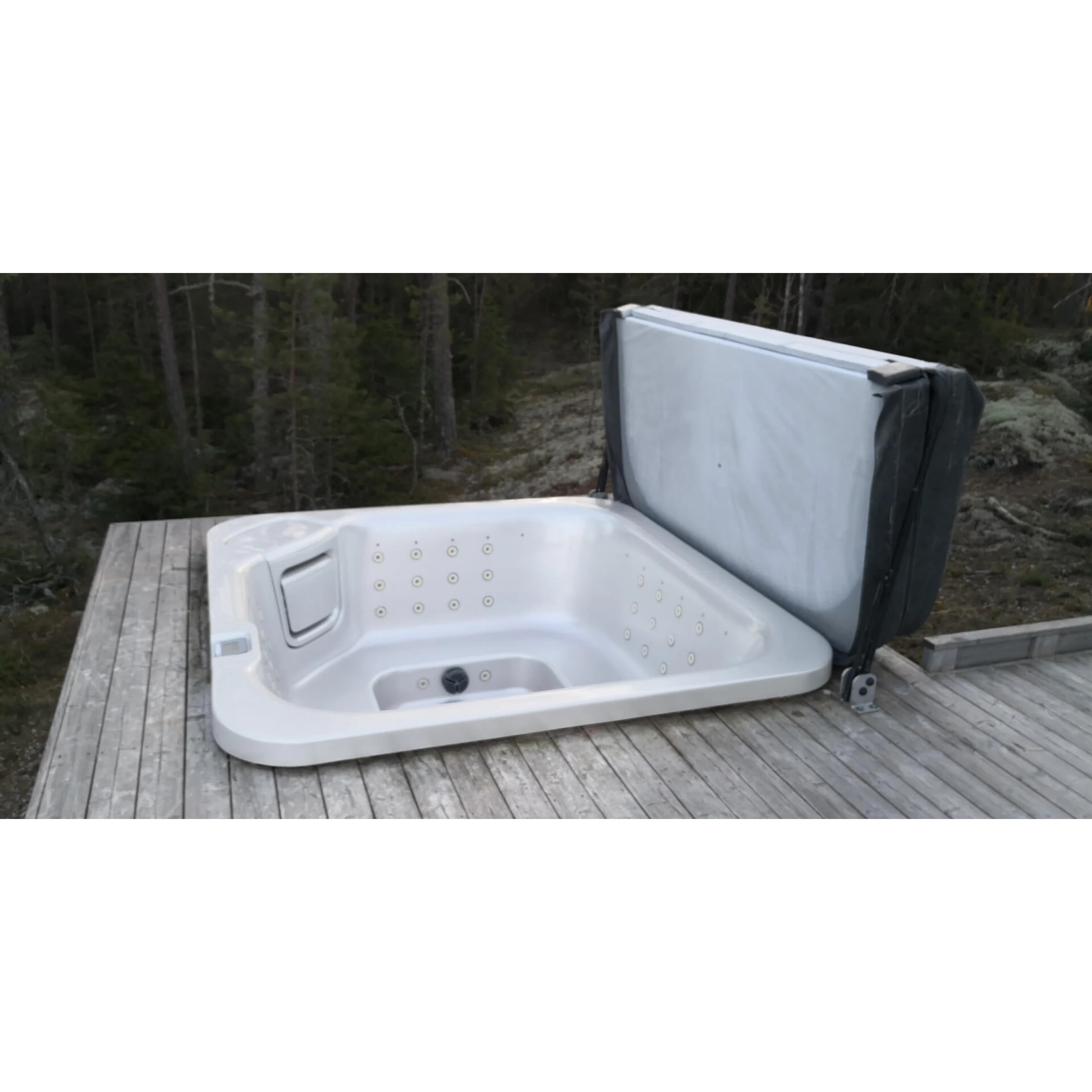

Novitek SmartCover
The insulating cover of the outdoor hot tub is the main protection against thermal fluctuations. SmartCover is extremely durable due to its completely waterproof insulation.
ENERGY EFFICIENT
Thanks to the excellent thermal insulation properties of the high quality insulation, SmartCover minimises heat loss from the pool.
MOISTURE AND WATERPROOF
Thanks to its closed cell structure, SmartCover insulation does not absorb water, making the cover impervious to moisture and water.The waterproof insulation not only maintains its insulation value, but is also hygienic and clean and does not develop mould or mildew odour.
STRONG AND DURABLE
SmartCover is long-lasting and designed to withstand heavy use. The excellent compressive strength of the insulation ensures that the cover will not be damaged by, for example, snow load.The weatherproof material resists heat, cold, snow, ice and UV radiation.
HIGH QUALITY CRAFTSMANSHIP
SmartCover is made to measure to fit all Novitek range of hot tubs.
STYLISH
SmartCover is also available in a stylish black vinyl finish.
GUARANTEE
We offer a 2 year warranty* on materials and manufacturing defects.* The warranty does not cover wear and tear due to normal use or changes due to weather conditions.
