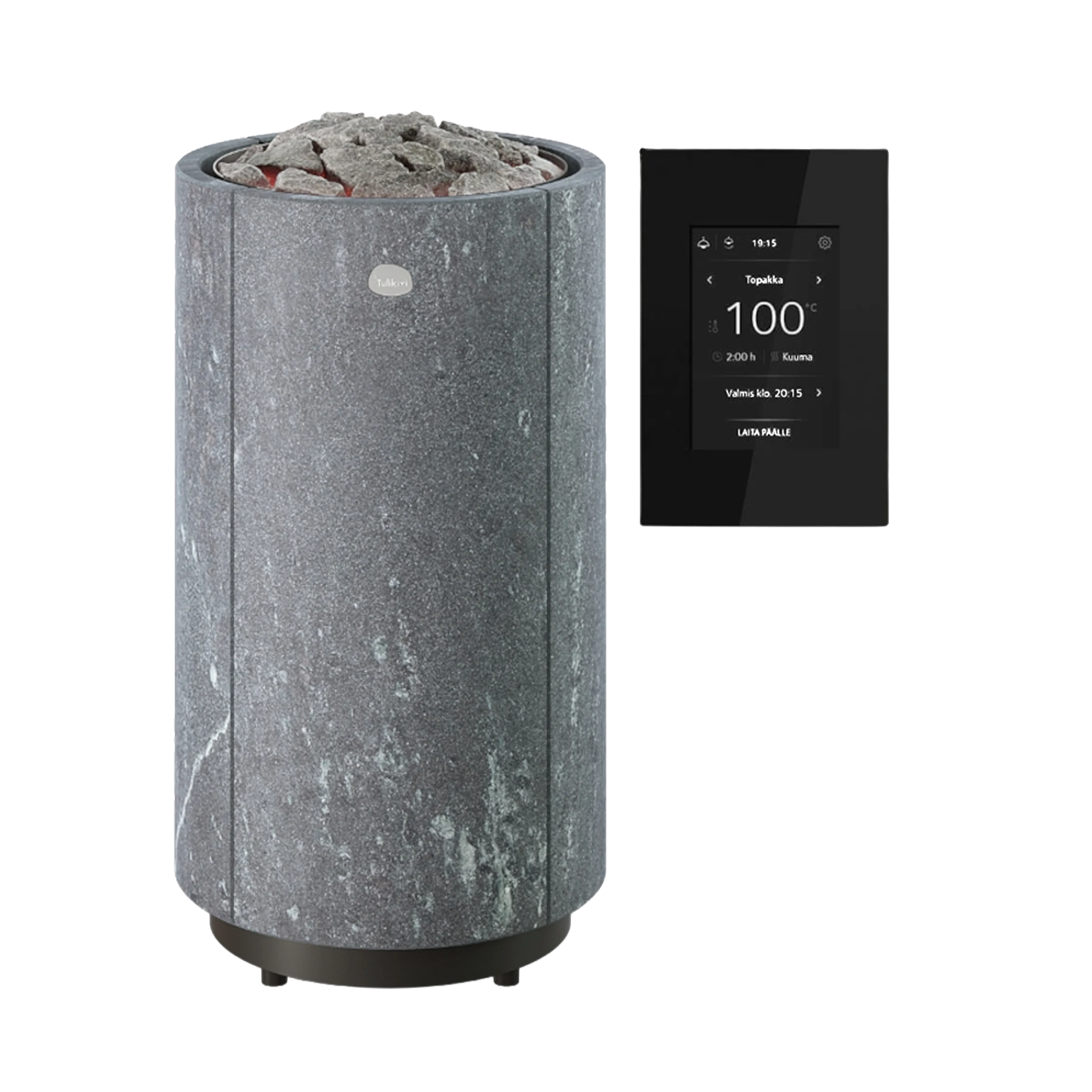

TULIKIVI KAARNA Nobile L is electric sauna heater designed for larger sauna rooms. A 12.8 kW or 15.3 kW model can be selected according to the sauna room volume.
The heater is finished with Nobile soapstone elements. The height of the structure can be adjusted from 790 to 940 mm, allowing the heater position to be adapted to the height of the sauna benches and the selected installation location. The manufacturer recommends installing the heater as low as possible while maintaining the safety distances specified in the installation instructions.
The heater can be installed on the sauna floor or integrated into the bench structure. When integrating the heater into the benches, the position of the top of the heater in relation to the bench surface must be taken into account and the safety distances specified by the manufacturer must be maintained.
Approximately 50 kg of sauna stones are recommended for the heater. The manufacturer recommends using olivine-diabase stones with a diameter of up to 10 cm. The stones should be placed loosely, leaving sufficient air gaps and ensuring that they do not become wedged between the heating elements. The manufacturer does not permit the use of ceramic sauna stones.
The heater is controlled using a separate Tulikivi control panel. Electrical connection and installation must be carried out by a qualified electrician in accordance with the manufacturer’s instructions and applicable electrical safety requirements.
Technical data:
| Model | Output, kW | Sauna size, m3 | Stone capacity, kg | Weight without stones, kg | Cable, mm2 | Dimensions mm | ||
| width | depth | height | ||||||
| TULIKIVI KAARNA Nobile L | 12,8 | 11 - 19 | 50 | 90 | 2 × 5 × 2,5 | 430 | 430 | 790 - 940 |
| TULIKIVI KAARNA Nobile L | 15,3 | 14 - 24 | 50 | 90 | 2 × 5 × 2,5 | 430 | 430 |
790 - 940 |
The data cable for the control panel and sauna stones are sold separately.
